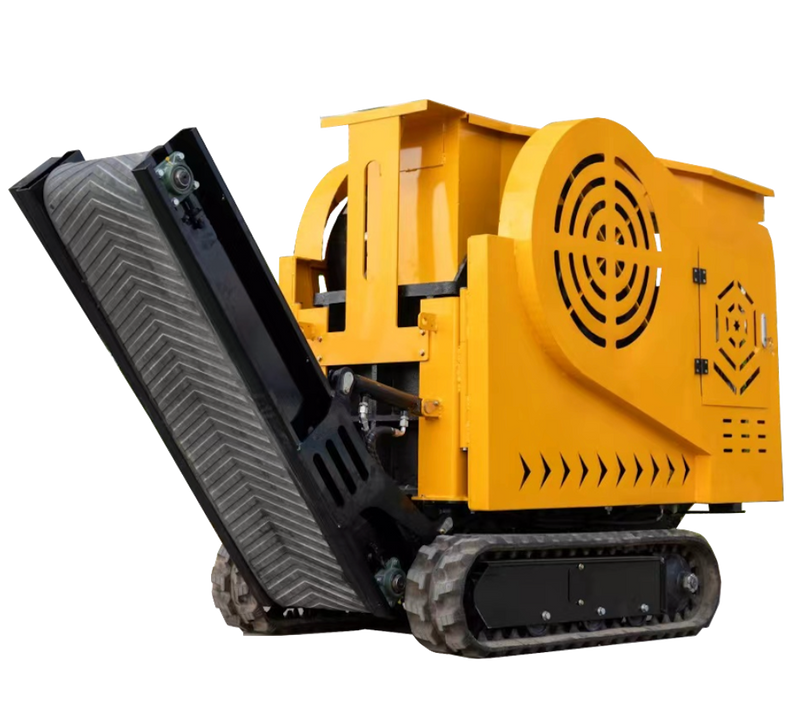

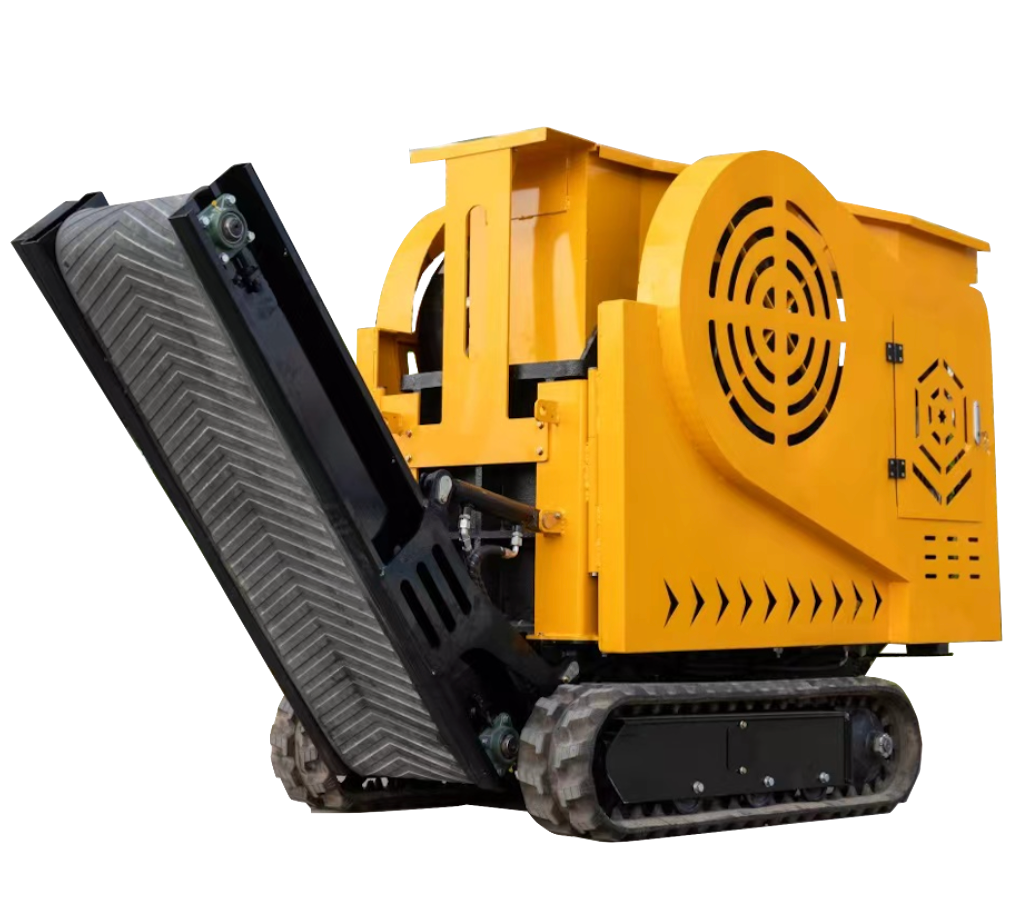

Stone Crusher Euro V 2 Cylinder Diesel Engine

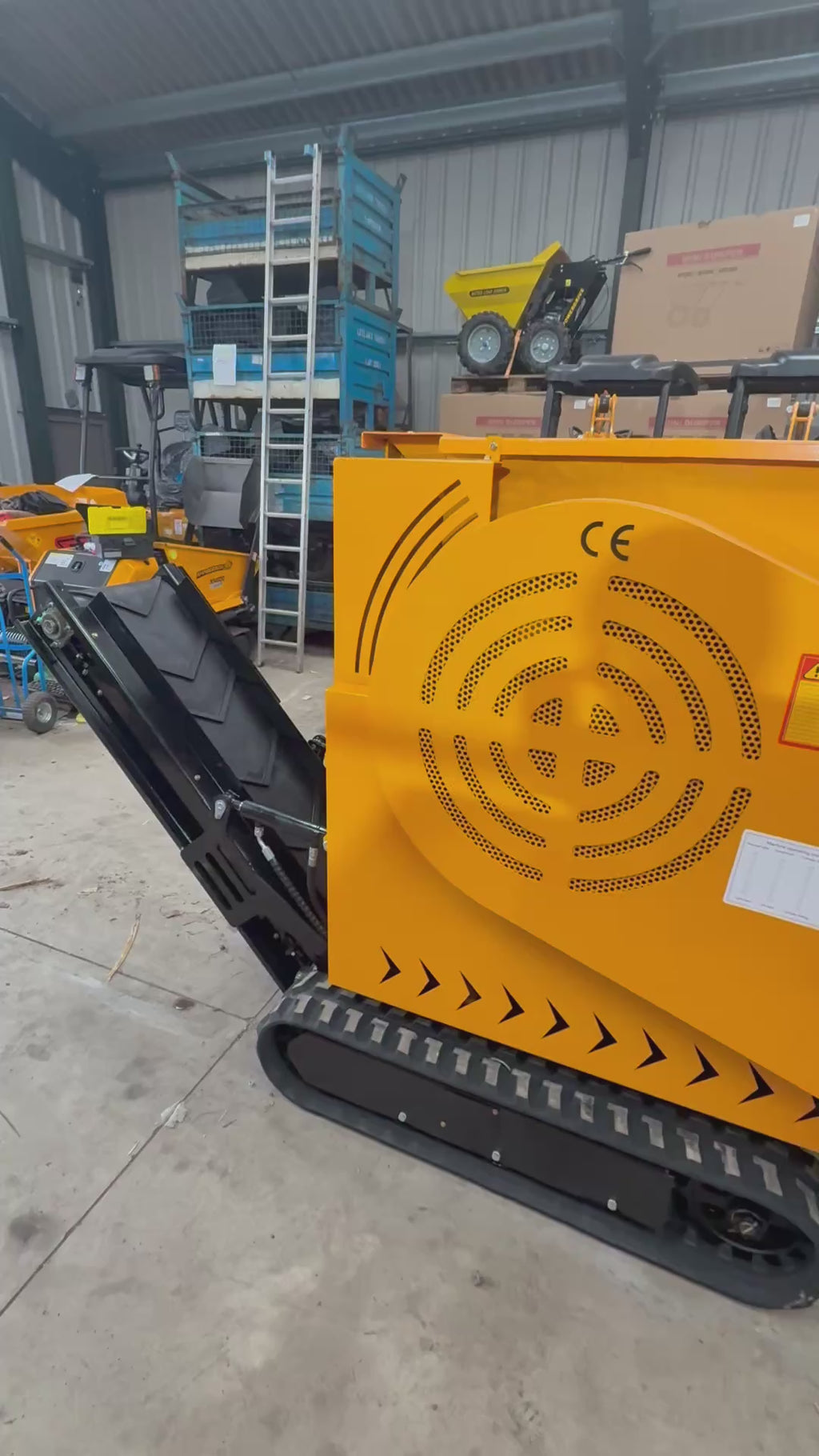

HTJC-430 Crawler Jaw Crusher Instruction

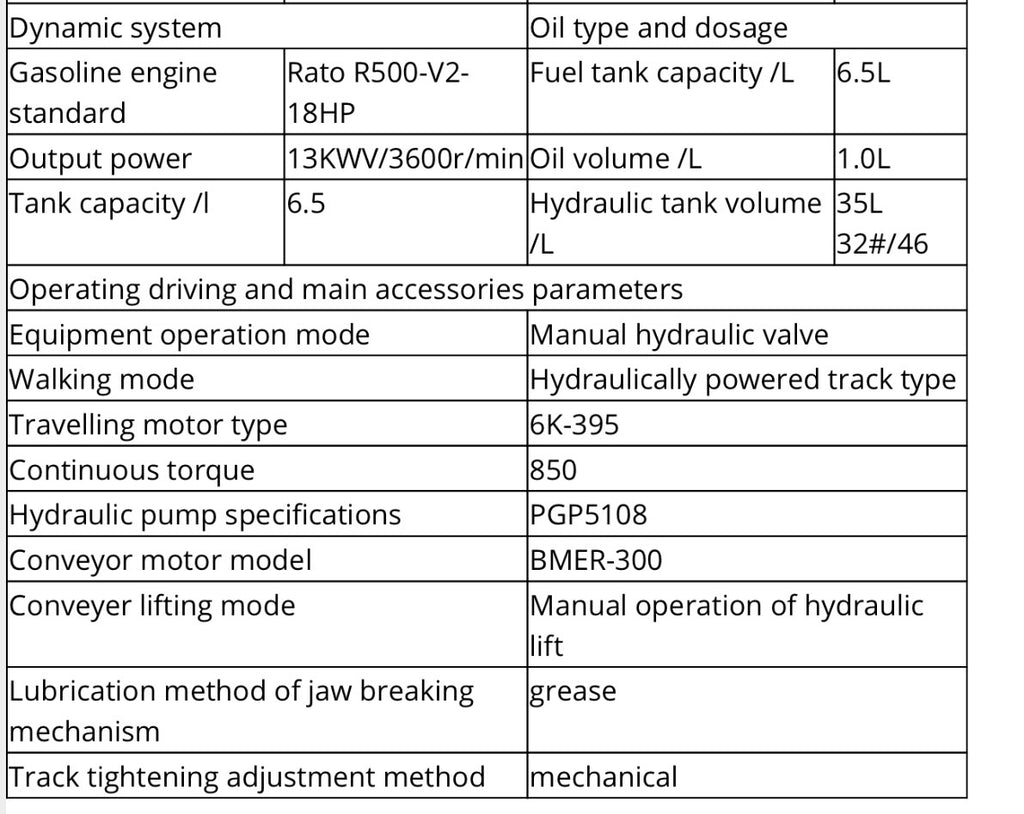

1. The power system adopts gasoline engine and diesel engine, and the engine is directly connected to the hydraulic pump, i.e. the whole vehicle is controlled by hydraulic pressure, and the walking is controlled by 18 chassis and 200 wide tracks.
2. Conveyor belt device lifting and lowering using oil cylinder control, discharge clearance from the ground can be controlled
3. Hopper volume 0.4m
4. Standard jaw crusher is used, with standardized fittings.
5. Crushing transmission mode using transmission motor, drive belt drive crusher, control direct manipulation of hydraulic multi-way valve
6. The whole car cover can be opened, easy maintenance.
The working system includes the drive motor to drive the jaw crusher, in the crushing process, a crushing chamber is formed between the movable jaw and the fixed jaw, the material enters into the crushing chamber from the inlet, and it is squeezed and crushed by the movable jaw and the fixed jaw each other. The movable jaw is driven by eccentric shaft to produce reciprocating motion, so that the material in the crushing cavity between the two jaw plates is subject to extrusion, bending and other forces, so as to break the large material into smaller particles, to achieve the effect of stone crushing; after crushing the stone through the conveyor device, the stone material will be transported to the discharge area.
