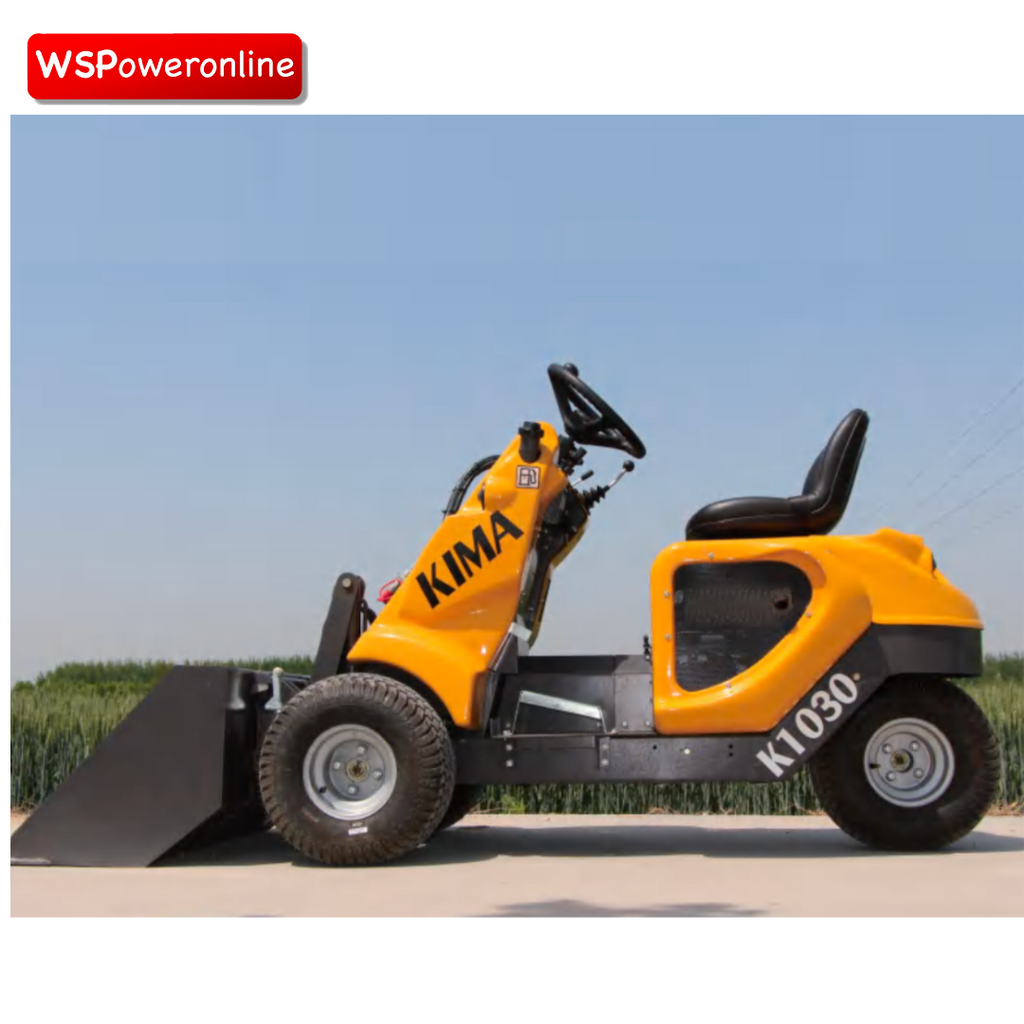

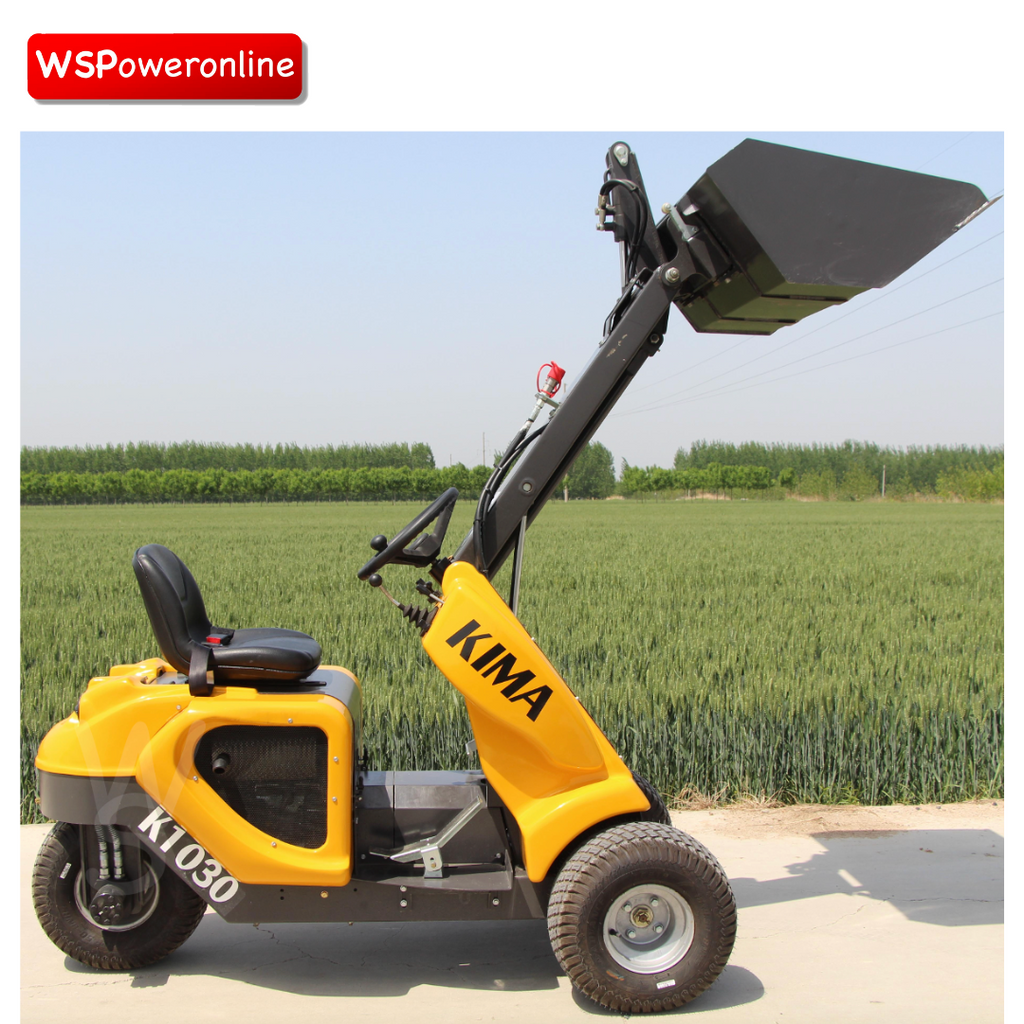

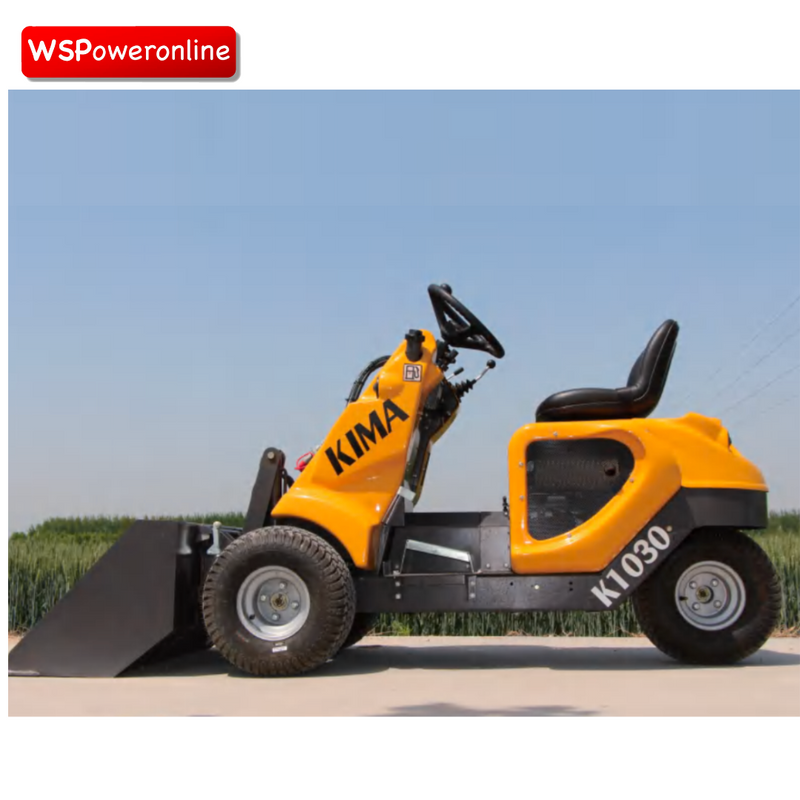

KIMA 1030 Wheel Loader
Description
The K1030 wheel loader is a universal helper for construction, on the farm, for gardening or landscape work. This wheel loader is an open wheel loader with a powerful HP Rate petrol engine which has 16.8 kw at 3600rpm with a maximum torque of 47Nm at 2500 rpm.This farm loader is operated via a hydrostatic drive unit and reaches a maximum driving speed of 12 km/h.

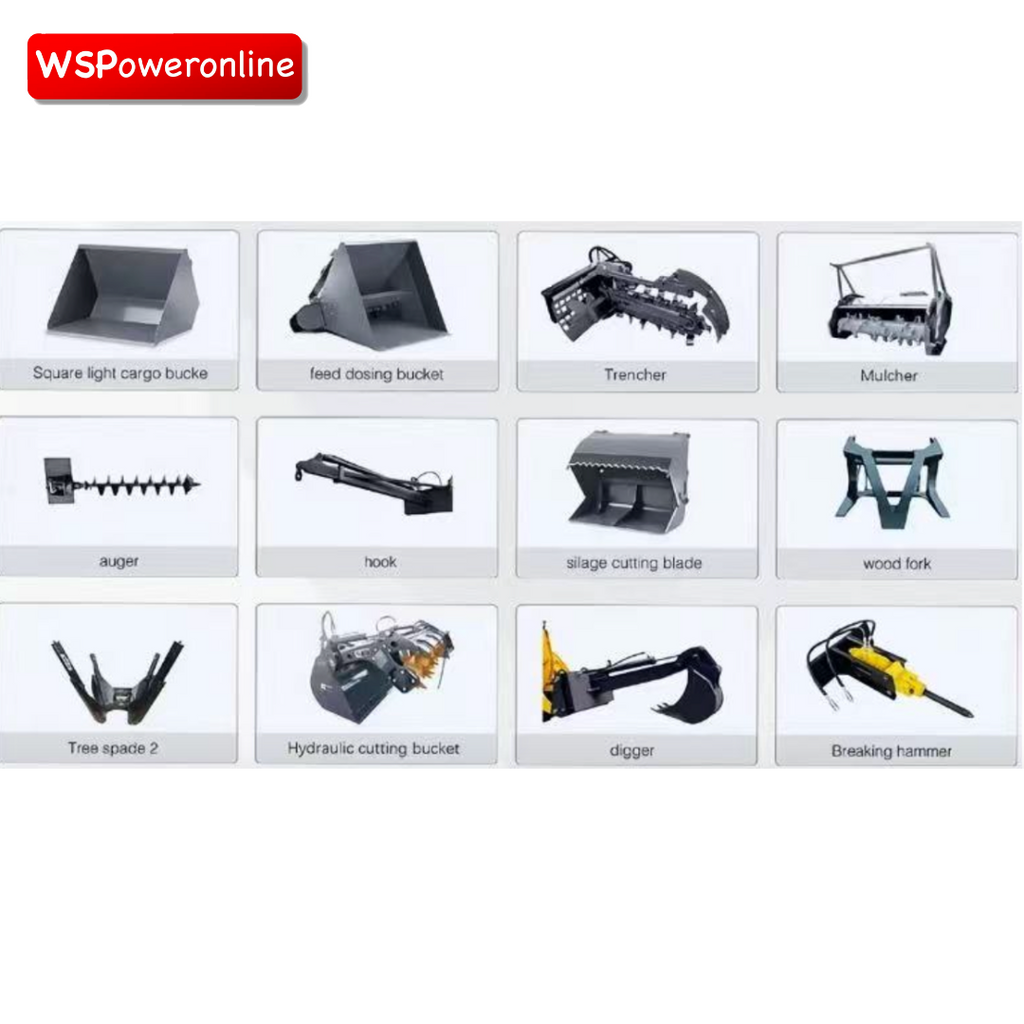

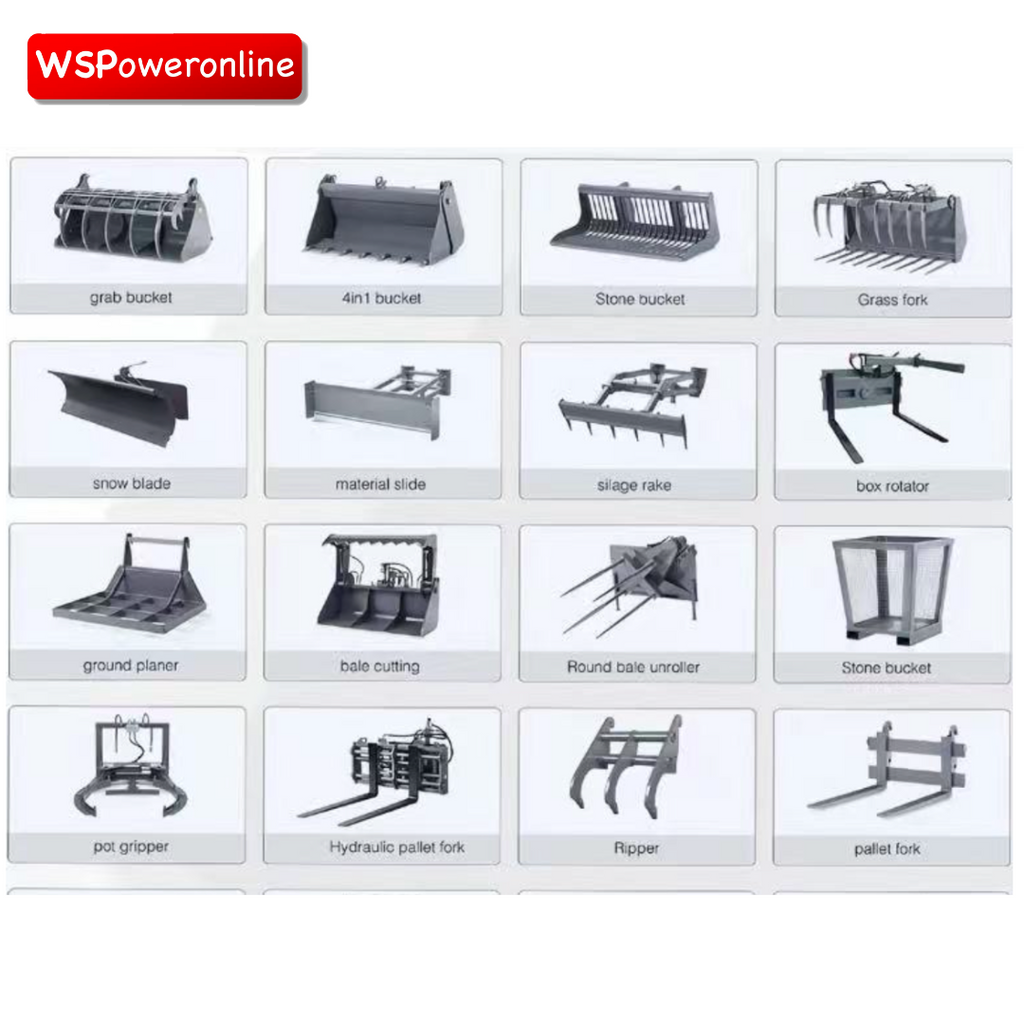

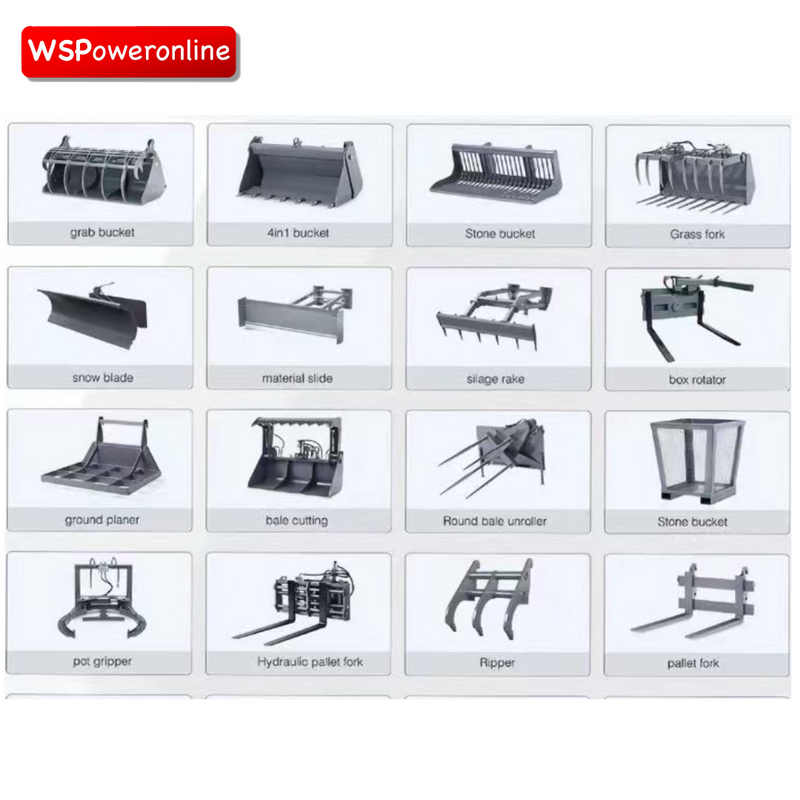

The K1030 comes with a standard bucket but WSPower carry a full range of attachments to add functions and capabilities to make this a very versatile machine.

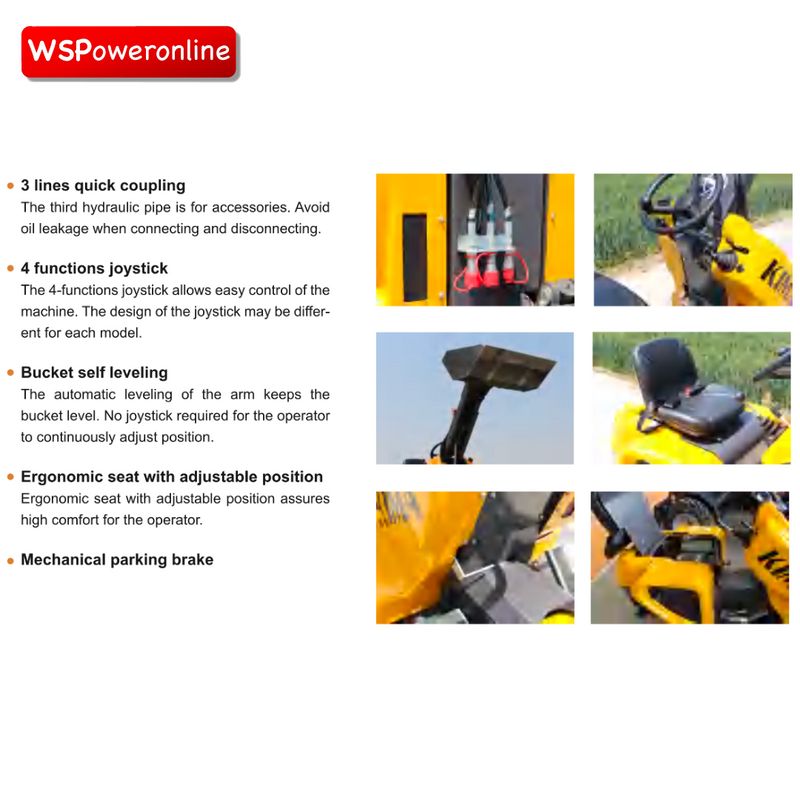

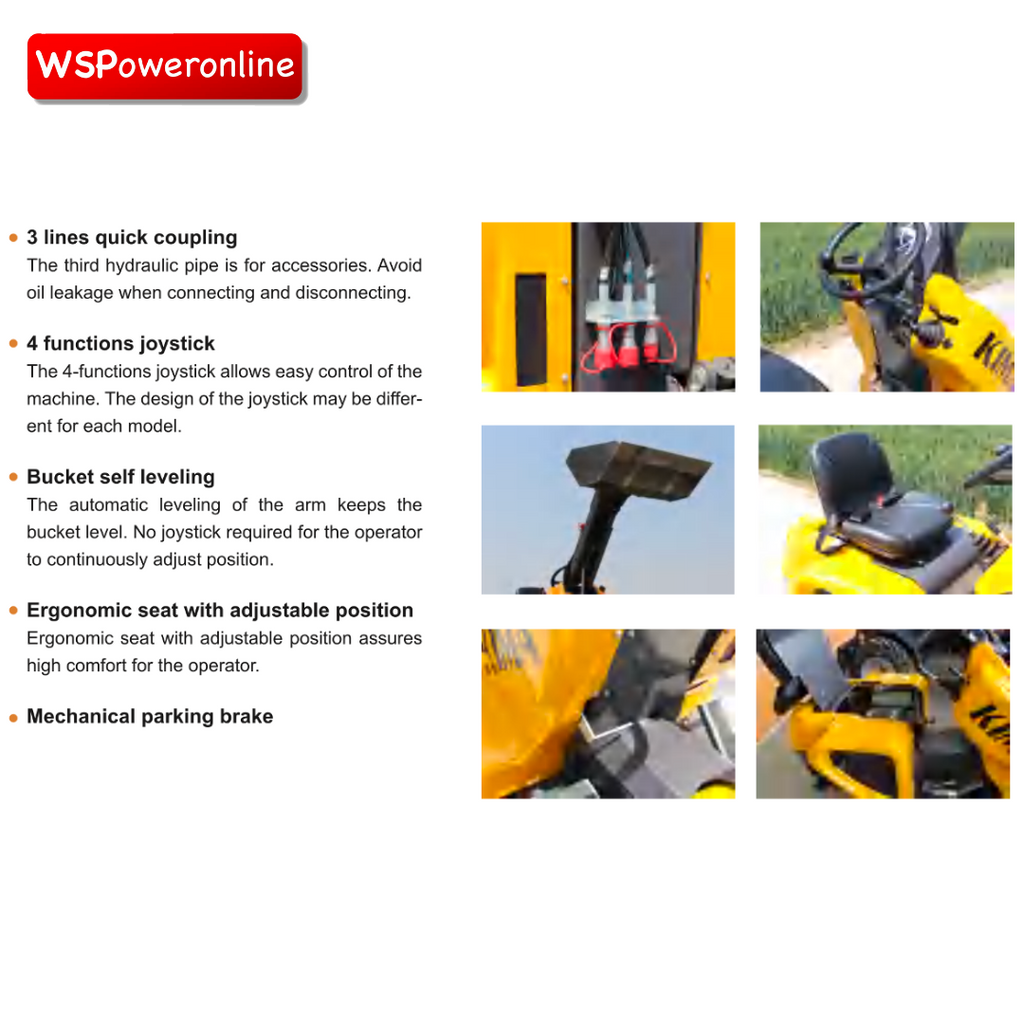

Standard Features
3 Lines Coupling
The third hydraulic pipe is for accessories. Avoid oil leakage when connecting and disconnecting.
4 Functions Joystick
The 4-functions joystick allows easy control of the machine. The design of the joystick maybe different for each model.
Bucket Self Levelling
The automatic levelling of the arm keeps the bucket level. No joystick required for the operator to continuously adjust position.
Ergonomic Seat with adjustable position
Ergonomic seat with adjustable position assures high comfort for the operator.
Mechanical Parking Brake

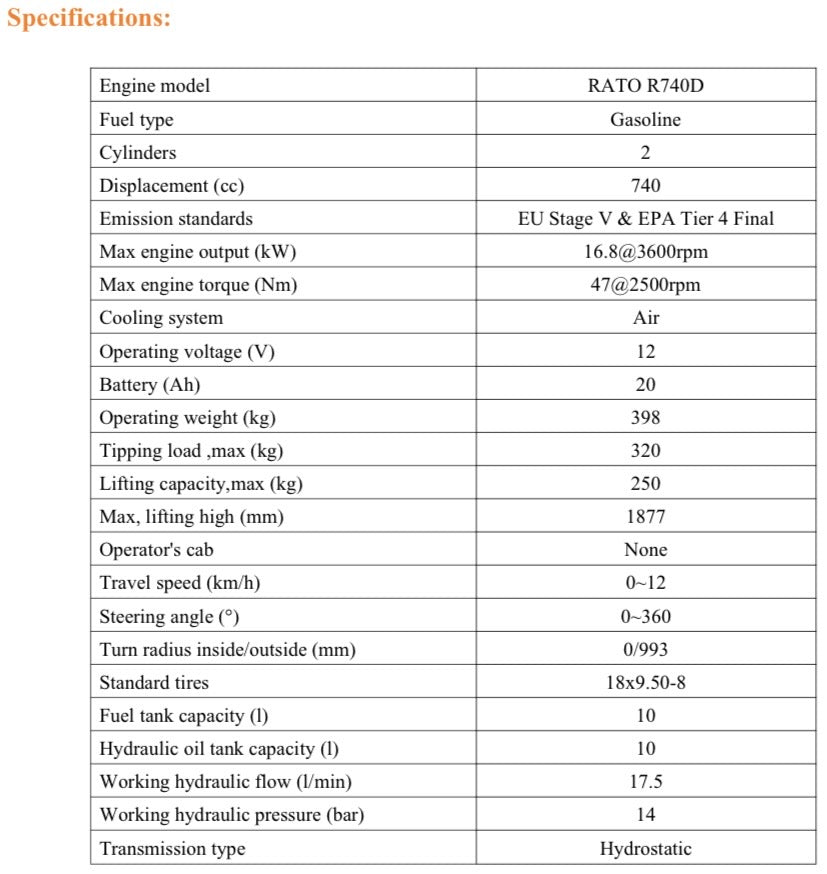

Technical Parameters
Engine RATO R740D
Fuel Type Gasoline
Cylinders 2
Displacement (cc) 740
Emission Standard EU Stage V & EPA Tier 4 Final
Max Engine Output (KW) 16.8 @ 3600rpm
Max Engine Torque (Nm) 47@ 2500rpm
Cooling System Air
Operating Voltage (V) 12
Battery (Ah) 20
Operating Weight (Kg) 500
Max tipping load (Kg). 400
Max lifting capacity (Kg) 350
Travel speed (Km/h) 0-12
Steering angle (°) 0-360
Turn radius inside/outside (mm) 0/993
Standard Tyre 18 x 9 50-8
Fuel tank capacity (L) 10
Working Hydraulic Flow (L/min) 17.5
Working Hydraulic Pressure (bar) 14
Transmission type Hydrostatic
